BackHome > Products > Power transformer

Power transformerSpecial transformer

Download Online inquiry

Product overview
Apply
Specifications
Technical

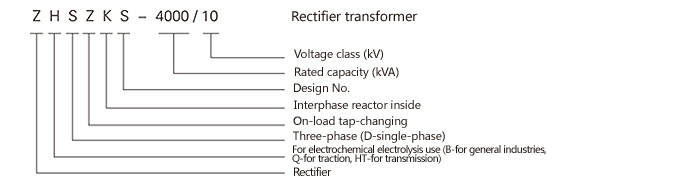

General industries, electrolytic metallurgy industries, ZB and ZN series

Model	Rated capacity	Rated voltage(V)			Connection group	Loss (kW)		No-load current	Short-circuit impedance
	(kVA)	HV	MV	LV	symbol	No-load	On-load	(%)	(%)
ZHSZK-630/10	630	10000,6000	6000	11×√3 246 45 345 55.5~83.5 27class 77~134 27class 125~250 27class 100~175 27class 268~311 565	Y/Y ⊥ λ	1.4	8.3		6
ZHSZK-1000/6.3	1000	6300			Y/Y ⊥ λ
ZHSZK-1200/6.3	1200	6000±5%			Y/Y － λ
ZHSZK-1600/10	1600	6000±5%			D.YnⅡ D.do				7.5
ZHSZK-1800/35	1800	35000			Y.△/Y － λ ,Y － λ	8.2	29.8	2	7.1
ZHSZK-2000/10	2000	10000±5%			Y/Y ⊥ Y,△/Y ⊥ λ	3.54	18.32		8
ZHSZK-2000/35	2000	35000			Y/Y ⊥ λ
ZHSZK-4000/35	4000	35000			△/(Y)Y ⊥ λ, Y ⊥ λ	6.93	42.87		8
ZHSZK-4400/10	4400	10000			Y/Y ⊥ λ, Y ⊥ λ
ZHSZK-5100/10	5100	10000			Y/Y ⊥ λ
ZHSSP-5900/35	5900	35000			D.Yn, Y5	7.72	64.62		7
ZHSZK-6200/35	6200	35000			△/Y ⊥ λ	8.2	69.3		9.38

Transformer for yellow phosphorus furnace JB/T85606-1996

Model & capacity	Rated voltage (kV)		National standard
(kVA)	HV	LV	No-load loss (kW)	Load loss (kW)	No-load current (%)	Short-circuit impedance (%)
HLS-2000	6 6.3 10 35	180,167.5,155,142.5,130	1.8	29	3	7-8
HLS-2500		215,200,185,168,130	5.7	34	3	7-8
HLSSP-2150		230,215,200,180,130	6.8	41	3	7-8
HLSSP-4000		245,231,218,203,196,178,140	8.2/9.4	51/58	2.8	7-8
HLSSP-5000		260,245,232,220,199,182,140	9.8/11.5	59/68	2.6	6-8

Transformer for electric slag furnace JB/T8447-1996

Model & capacity	Primary voltage	Secondary voltage	Voltage regulating mode	Voltage regulating progression	Capacity of external saturated reactor (kvar)	Short-circuit impedance
(kVA)	(kV)	(V)			Capacity(kvar)	(%)
HZ-200	6 6.3 10 35	30-60	Off-circuit tap-changing	5-7		10kV at 5-7 35kV at 6-8
HZ-630		35-70
HZ-800		40-80
HZ-1250		45-90	On-load tap-changing (adopt on-load tap changer)	19-27	1330
HZ-1600		45-90			1720
HZ-2000		50-100			2130
HZ-2500		55-110			2690
HZ-3150		60-120			3290

Transformer for electric arc furnace JB/T9640-1999

Model & capacity	Primary voltage	Secondary voltage	Connection group	Cooling mode	Voltage regulating mode	Loss (kW)		No-load current	Short-circuit impedance
(kVA)	(kV)	(V)	symbol	Cooling mode	Voltage regulating mode	No-load	On-load	(%)	(%)
HS-630	6 6.3 10 10.5 11	200 170 160 98	D-Y do-11	ONAN	Off-circuit tap-changing	2.2	11	3.0	1.05/25 9.5/23 8.5/20
HS-800						2.7	13.5	2.9
HS-1000						3.1	16	2.8
HS-1250		210 180 121 104				3.7	18.5	2.6
HS-1600						4.6	24	2.5
HS-2000						5.6	28	2.4
HS-2500		220 190 127 110		OFWF		6.7	34.5	2.3
HSSP-3150						8.0	41.5	2.2
HSSP-4000						8.25	51.5	2.1

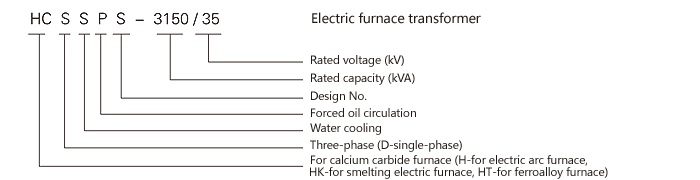

Transformer for calcium carbide furnace JB/T6303-92

Model & capacity	Primary voltage	Secondary voltage	Connection group	Cooling mode	National standard				Enterprise standard
(kVA)	(kV)	(V)	symbol	Cooling mode	No-load loss (kW)	Load loss (kW)	No-load current (%)	Short-circuit impedance (%)	No-load loss (kW)	Load loss (kW)	No-load current (%)
HCS-1000	6 6.3 10 10.5	57-73	D.do-12	ONAN	3.27	21.4	3	6-8	2.62	17.0	1.5
HCS-1250		57-73			4.08	26.7	3	6-8	3.30	21.3	1.5
HCS-1600		67-83			4.40	28.8	3	6-8	3.50	23.0	1.5
HCS-1800		67-83			4.95	32.4	3	6-8	4.00	24.3	1.5
HCS-2000		72-96			5.50	36.0	3	6-8	4.40	27.0	1.3
HCS-2500		72-96			6.85	40.6	3	6-8	5.50	30.5	1.3
HCSP-3150	35	90-100	D.do-12 Y.do-11	OFWF	7.80	51.2	3	6-8	6.30	35.9	1.2
HCSP-3600					8.90	56.5	3	6-8	7.15	41.0	1.2
HCSP-4000					9.10	65.0	3	6-8	7.30	46.0	1.2

Transformer for submerged arc furnace (ferroalloy, crystal silicon, electric corundum, copper matte, pig iron, boron carbide)

Model & capacity	Primary voltage	Secondary voltage	Connection group	Cooling mode	Voltage regulating mode	National standard JB/T6306-92
(kVA)	(kV)	(V)	symbol	Cooling mode	Voltage regulating mode	No-load loss (kW)	Load loss (kW)	No-load current (%)	Short-circuit impedance (%)
HKS-1000	6 6.3 10 10.5 35	73 69 65 61 57	D.do-12	ONAN	Off-circuit tap-changing by manual	3.27	21.4	3	6-8
HKS-1250						4.08	26.7	3	6-8
HKS-1600						4.40	28.8	3	6-8
HKS-2000		83 70 75 71 67				5.50	36.0	3	6-8
HKS-2500		83 70 75 71 67				6.85	40.6	3	6-8
HKSSP-3150		98 94 90 86 82				7.80	51.2	3	6-8
HKSSP-4000		98 94 90 86 82				9.10	65.0	3	6-8
HKSSP-5000		113~90 126~100				10.20	71.4	3	6-8
HKSSP-6300		113~90 126~100				11.80	90.0	2.5	6-8

Order guide
Order guide for special transformer
● We usually prepare a technical agreement according to customer’s requirements, the content covers rated capacity, primary and secondary voltage, voltage regulating mode and progression, connection group symbol, short-circuit impedance, test data and other special technical requirements.
● n the event of an objection, we keep the right to interpret.
Note: data mentioned in this catalogue subject to change without notice for further improvements. If there is any special technical request, we’d like to settle the problem through friendly negotiation when placing an order.

^{}
